IMERG products#

The IMERG algorithms intercalibrate, merge, and interpolate satellite Passive Microwave (PMW) precipitation estimates, together with microwave-calibrated infrared (IR) satellite estimates, precipitation gauge analyses, and potentially other precipitation estimators at fine time and space scales for the TRMM and GPM eras over the entire globe.

The IMERG-ER (Early Run) and IMERG-LR (Late Run) products are considered Near-Real-Time (NRT) products.

IMERG-ER is available 4 hours from NRT, while IMERG-LR is available after 12 hours. The IMERG-FR (Final Run) product is instead produced with a delay of at least 3.5 months.

For more information on the IMERG products, please read the corresponding product technical documentation:

Now let’s import the package required in this tutorial.

[ ]:

import datetime

import cartopy.crs as ccrs
import matplotlib.pyplot as plt
import xarray as xr
import ximage  # noqa

import gpm
from gpm.utils.geospatial import (
    get_circle_coordinates_around_point,
    get_country_extent,
)

Let’s have a look at the available IMERG products:

[ ]:

gpm.available_products(product_categories="IMERG", product_types="RS")

['IMERG-FR']

[ ]:

gpm.available_products(product_categories="IMERG", product_types="NRT")

['IMERG-ER', 'IMERG-LR']

1. Download Data#

Now let’s download an IMERG product over a couple of hours.

To download GPM data with GPM-API, you have to previously create a NASA Earthdata and/or NASA PPS account. We provide a step-by-step guide on how to set up your accounts in the official GPM-API documentation.

[ ]:

# Specify the time period you are interested in
start_time = datetime.datetime.strptime("2019-07-13 11:00:00", "%Y-%m-%d %H:%M:%S")
end_time = datetime.datetime.strptime("2019-07-13 13:00:00", "%Y-%m-%d %H:%M:%S")

# Specify the product and product type
product = "IMERG-FR"  # 'IMERG-ER' 'IMERG-LR'
product_type = "RS"  # "NRT"
storage = "PPS"
# Specify the version
version = 7

[ ]:

# Download the data
gpm.download(
    product=product,
    product_type=product_type,
    version=version,
    start_time=start_time,
    end_time=end_time,
    storage=storage,
    force_download=False,
    verbose=True,
    progress_bar=True,
    check_integrity=False,
)

100%|██████████| 4/4 [00:13<00:00,  3.26s/it]

4 files has been download.
All the available GPM IMERG-FR product files are now on disk.

Once, the data are downloaded on disk, let’s load the IMERG product and look at the dataset structure.

2. Load Data#

With GPM-API, the name granule is used to refer to a single file, while the name dataset is used to refer to a collection of granules.

GPM-API enables to open single or multiple granules into xarray, a software designed for working with labeled multi-dimensional arrays.

The gpm.open_granule_dataset(filepath) opens a single granule into a xarray.Dataset object by providing the path of the file of interest.
The gpm.open_dataset function enable to open a collection of granules over a period of interest into xarray.Dataset object.

[ ]:

# Load IMERG dataset
ds = gpm.open_dataset(
    product=product,
    product_type=product_type,
    version=version,
    start_time=start_time,
    end_time=end_time,
)
ds

<xarray.Dataset> Size: 1GB
Dimensions:                         (time: 4, lat: 1800, lon: 3600, lonv: 2,
                                     latv: 2, nv: 2)
Coordinates:
    lon_bnds                        (lonv, lon) float32 29kB dask.array<chunksize=(2, 3600), meta=np.ndarray>
    lat_bnds                        (latv, lat) float32 14kB dask.array<chunksize=(2, 1800), meta=np.ndarray>
  * lon                             (lon) float32 14kB -179.9 -179.9 ... 179.9
  * lat                             (lat) float32 7kB -89.95 -89.85 ... 89.95
    time_bnds                       (time, nv) datetime64[ns] 64B 2019-07-13T...
  * time                            (time) datetime64[ns] 32B 2019-07-13T11:3...
    crsWGS84                        int64 8B 0
Dimensions without coordinates: lonv, latv, nv
Data variables:
    precipitation                   (time, lat, lon) float32 104MB dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
    randomError                     (time, lat, lon) float32 104MB dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
    probabilityLiquidPrecipitation  (time, lat, lon) float32 104MB dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
    precipitationQualityIndex       (time, lat, lon) float32 104MB dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
    MWprecipitation                 (time, lat, lon) float32 104MB dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
    MWprecipSource                  (time, lat, lon) float32 104MB dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
    MWobservationTime               (time, lat, lon) float64 207MB dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
    IRprecipitation                 (time, lat, lon) float32 104MB dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
    IRinfluence                     (time, lat, lon) float32 104MB dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
    precipitationUncal              (time, lat, lon) float32 104MB dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
Attributes: (12/15)
    FileName:           3B-HHR.MS.MRG.3IMERG.20190713-S110000-E112959.0660.V0...
    MissingData:
    DOI:                10.5067/GPM/IMERG/3B-HH/07
    DOIauthority:       http://dx.doi.org/
    AlgorithmID:        3IMERGHH
    AlgorithmVersion:   3IMERGH_7.0
    ...                 ...
    ProcessingSystem:   PPS
    DataFormatVersion:  7e
    MetadataVersion:    7e
    ScanMode:           Grid
    history:            Created by ghiggi/gpm_api software on 2025-03-02 13:0...
    gpm_api_product:    IMERG-FR

If you are interested to work only with a specific subset of variables, you can specify their names using the variables argument in gpm.open_dataset function.

[ ]:

ds1 = gpm.open_dataset(
    product=product,
    product_type=product_type,
    version=version,
    start_time=start_time,
    end_time=end_time,
    variables=["precipitation", "probabilityLiquidPrecipitation"],
)
ds1

<xarray.Dataset> Size: 207MB
Dimensions:                         (time: 4, lat: 1800, lon: 3600, nv: 2)
Coordinates:
  * lon                             (lon) float32 14kB -179.9 -179.9 ... 179.9
  * lat                             (lat) float32 7kB -89.95 -89.85 ... 89.95
    time_bnds                       (time, nv) datetime64[ns] 64B 2019-07-13T...
  * time                            (time) datetime64[ns] 32B 2019-07-13T11:3...
    crsWGS84                        int64 8B 0
Dimensions without coordinates: nv
Data variables:
    precipitation                   (time, lat, lon) float32 104MB dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
    probabilityLiquidPrecipitation  (time, lat, lon) float32 104MB dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
Attributes: (12/15)
    FileName:           3B-HHR.MS.MRG.3IMERG.20190713-S110000-E112959.0660.V0...
    MissingData:
    DOI:                10.5067/GPM/IMERG/3B-HH/07
    DOIauthority:       http://dx.doi.org/
    AlgorithmID:        3IMERGHH
    AlgorithmVersion:   3IMERGH_7.0
    ...                 ...
    ProcessingSystem:   PPS
    DataFormatVersion:  7e
    MetadataVersion:    7e
    ScanMode:           Grid
    history:            Created by ghiggi/gpm_api software on 2025-03-02 11:1...
    gpm_api_product:    IMERG-FR

3. Basic Manipulations#

You can list variables, coordinates and dimensions with the following methods:

[ ]:

# Available variables
variables = list(ds.data_vars)
print("Available variables: ", variables)
# Available coordinates
coords = list(ds.coords)
print("Available coordinates: ", coords)
# Available dimensions
dims = list(ds.dims)
print("Available dimensions: ", dims)

Available variables:  ['precipitation', 'randomError', 'probabilityLiquidPrecipitation', 'precipitationQualityIndex', 'MWprecipitation', 'MWprecipSource', 'MWobservationTime', 'IRprecipitation', 'IRinfluence', 'precipitationUncal']
Available coordinates:  ['lon_bnds', 'lat_bnds', 'lon', 'lat', 'time_bnds', 'time', 'crsWGS84']
Available dimensions:  ['time', 'lat', 'lon', 'lonv', 'latv', 'nv']

To select the DataArray corresponding to a single variable:

[ ]:

variable = "precipitation"
da = ds[variable]
print("Data type of numerical array: ", type(da.data))
da

Data type of numerical array:  <class 'dask.array.core.Array'>

<xarray.DataArray 'precipitation' (time: 4, lat: 1800, lon: 3600)> Size: 104MB
dask.array<transpose, shape=(4, 1800, 3600), dtype=float32, chunksize=(1, 1800, 3600), chunktype=numpy.ndarray>
Coordinates:
  * lon       (lon) float32 14kB -179.9 -179.9 -179.8 ... 179.8 179.8 179.9
  * lat       (lat) float32 7kB -89.95 -89.85 -89.75 ... 89.75 89.85 89.95
  * time      (time) datetime64[ns] 32B 2019-07-13T11:30:00 ... 2019-07-13T13...
    crsWGS84  int64 8B 0
Attributes:
    units:            mm/hr
    description:      Complete merged microwave-infrared (gauge-adjusted) pre...
    gpm_api_product:  IMERG-FR
    valid_min:        0
    valid_max:        1000
    gpm_api_decoded:  yes
    grid_mapping:     crsWGS84

If the array class is dask.Array, it means that the data are not yet loaded into RAM memory. To put the data into memory, you need to call the method compute, either on the xarray object or on the numerical array.

[ ]:

da = da.compute()
print("Data type of numerical array: ", type(da.data))
da

Data type of numerical array:  <class 'numpy.ndarray'>

To extract the numerical array from the xarray.DataArray, you can use:

[ ]:

da.data

array([[[ nan,  nan,  nan, ...,  nan,  nan,  nan],
        [ nan,  nan,  nan, ...,  nan,  nan,  nan],
        [ nan,  nan,  nan, ...,  nan,  nan,  nan],
        ...,
        [0.  , 0.  , 0.  , ..., 0.  , 0.  , 0.  ],
        [0.  , 0.  , 0.  , ..., 0.  , 0.  , 0.  ],
        [0.05, 0.05, 0.05, ..., 0.05, 0.05, 0.05]],

       [[ nan,  nan,  nan, ...,  nan,  nan,  nan],
        [ nan,  nan,  nan, ...,  nan,  nan,  nan],
        [ nan,  nan,  nan, ...,  nan,  nan,  nan],
        ...,
        [0.  , 0.  , 0.  , ..., 0.  , 0.  , 0.  ],
        [0.  , 0.  , 0.  , ..., 0.  , 0.  , 0.  ],
        [0.  , 0.  , 0.  , ..., 0.  , 0.  , 0.  ]],

       [[ nan,  nan,  nan, ...,  nan,  nan,  nan],
        [ nan,  nan,  nan, ...,  nan,  nan,  nan],
        [ nan,  nan,  nan, ...,  nan,  nan,  nan],
        ...,
        [0.01, 0.01, 0.01, ..., 0.01, 0.01, 0.01],
        [0.  , 0.  , 0.  , ..., 0.  , 0.  , 0.  ],
        [0.  , 0.  , 0.  , ..., 0.  , 0.  , 0.  ]],

       [[ nan,  nan,  nan, ...,  nan,  nan,  nan],
        [ nan,  nan,  nan, ...,  nan,  nan,  nan],
        [ nan,  nan,  nan, ...,  nan,  nan,  nan],
        ...,
        [0.  , 0.  , 0.  , ..., 0.  , 0.  , 0.  ],
        [0.01, 0.01, 0.01, ..., 0.01, 0.01, 0.01],
        [0.  , 0.  , 0.  , ..., 0.  , 0.  , 0.  ]]], dtype=float32)

To check that the loaded GPM IMERG product has regular (no missing) timesteps, you can use:

[ ]:

print(ds.gpm.has_regular_time)
print(ds.gpm.is_regular)

True
True

In case there are missing timesteps, you can obtain the time slices over which the dataset is regular:

[ ]:

list_slices = ds.gpm.get_slices_regular_time()
print(list_slices)

[slice(0, 4, None)]

You can then select a regular portion of the dataset with:

[ ]:

slc = list_slices[0]
print(slc)

slice(0, 4, None)

[ ]:

ds_regular = ds.isel(time=slc)

To instead check if the open dataset has a single or multiple timestep, you can use:

[ ]:

ds.gpm.is_spatial_2d

False

[ ]:

ds.isel(time=0).gpm.is_spatial_2d

True

Note that you can also select a timestep by value using the sel method:

[ ]:

ds.sel(time="2019-07-13T11:30:00")

<xarray.Dataset> Size: 285MB
Dimensions:                         (lat: 1800, lon: 3600, lonv: 2, latv: 2,
                                     nv: 2)
Coordinates:
    lon_bnds                        (lonv, lon) float32 29kB dask.array<chunksize=(2, 3600), meta=np.ndarray>
    lat_bnds                        (latv, lat) float32 14kB dask.array<chunksize=(2, 1800), meta=np.ndarray>
  * lon                             (lon) float32 14kB -179.9 -179.9 ... 179.9
  * lat                             (lat) float32 7kB -89.95 -89.85 ... 89.95
    time_bnds                       (nv) datetime64[ns] 16B 2019-07-13T11:00:...
    time                            datetime64[ns] 8B 2019-07-13T11:30:00
    crsWGS84                        int64 8B 0
Dimensions without coordinates: lonv, latv, nv
Data variables:
    precipitation                   (lat, lon) float32 26MB dask.array<chunksize=(1800, 3600), meta=np.ndarray>
    randomError                     (lat, lon) float32 26MB dask.array<chunksize=(1800, 3600), meta=np.ndarray>
    probabilityLiquidPrecipitation  (lat, lon) float32 26MB dask.array<chunksize=(1800, 3600), meta=np.ndarray>
    precipitationQualityIndex       (lat, lon) float32 26MB dask.array<chunksize=(1800, 3600), meta=np.ndarray>
    MWprecipitation                 (lat, lon) float32 26MB dask.array<chunksize=(1800, 3600), meta=np.ndarray>
    MWprecipSource                  (lat, lon) float32 26MB dask.array<chunksize=(1800, 3600), meta=np.ndarray>
    MWobservationTime               (lat, lon) float64 52MB dask.array<chunksize=(1800, 3600), meta=np.ndarray>
    IRprecipitation                 (lat, lon) float32 26MB dask.array<chunksize=(1800, 3600), meta=np.ndarray>
    IRinfluence                     (lat, lon) float32 26MB dask.array<chunksize=(1800, 3600), meta=np.ndarray>
    precipitationUncal              (lat, lon) float32 26MB dask.array<chunksize=(1800, 3600), meta=np.ndarray>
Attributes: (12/15)
    FileName:           3B-HHR.MS.MRG.3IMERG.20190713-S110000-E112959.0660.V0...
    MissingData:
    DOI:                10.5067/GPM/IMERG/3B-HH/07
    DOIauthority:       http://dx.doi.org/
    AlgorithmID:        3IMERGHH
    AlgorithmVersion:   3IMERGH_7.0
    ...                 ...
    ProcessingSystem:   PPS
    DataFormatVersion:  7e
    MetadataVersion:    7e
    ScanMode:           Grid
    history:            Created by ghiggi/gpm_api software on 2025-03-02 13:0...
    gpm_api_product:    IMERG-FR

To locate the location where maximum precipitation occurs, you can for example use the locate_max_value method:

[ ]:

print(ds["precipitation"].gpm.locate_max_value(return_isel_dict=True))  # {'lon': lon_index, 'lat': lat_idex}
print(ds["precipitation"].gpm.locate_max_value())  # (lon, lat)

{'lon': 3510, 'lat': 463}
(171.0500030517578, -43.64999771118164)

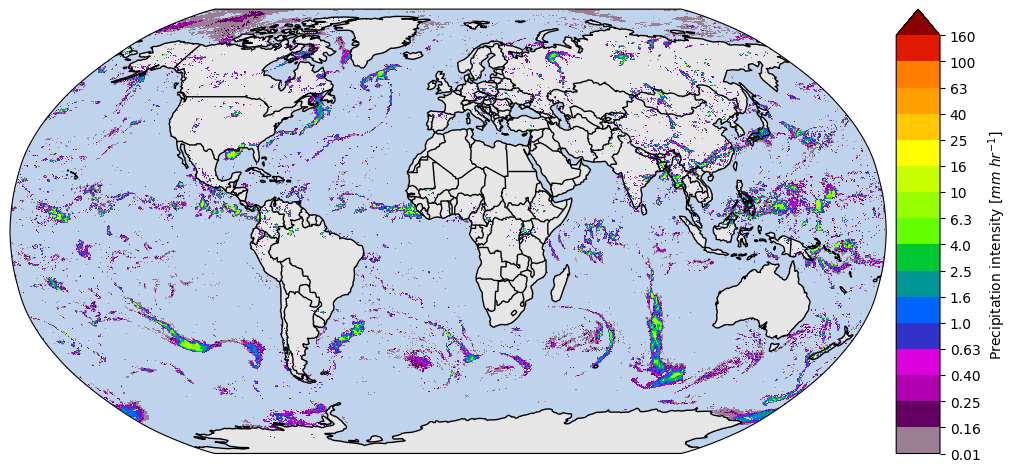

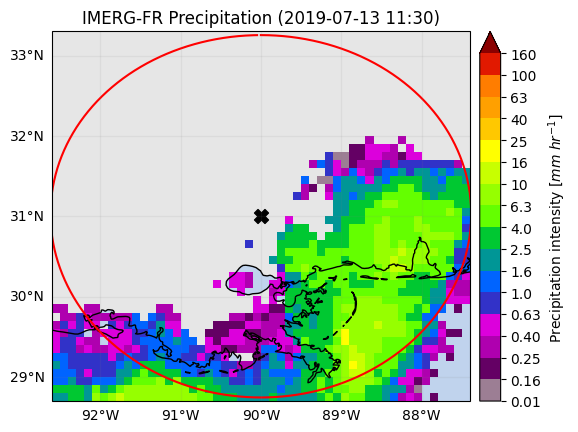

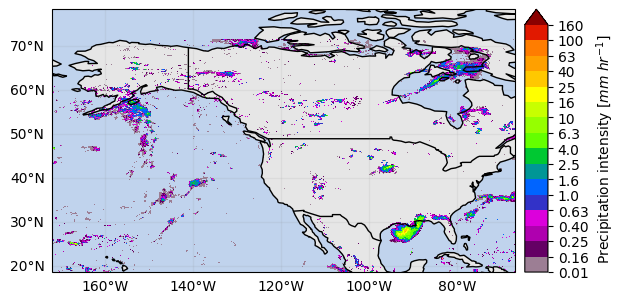

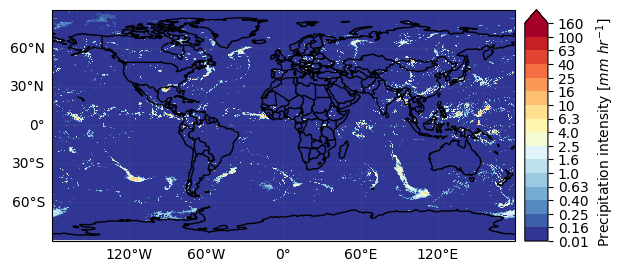

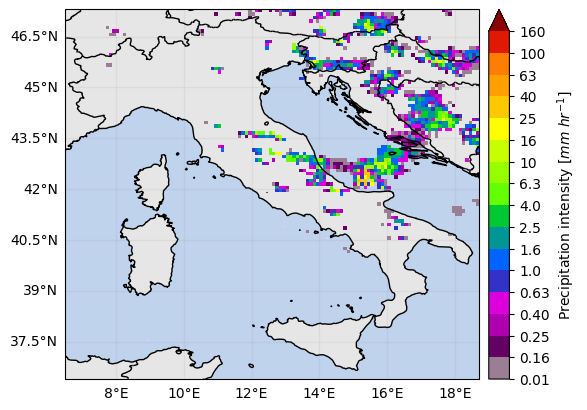

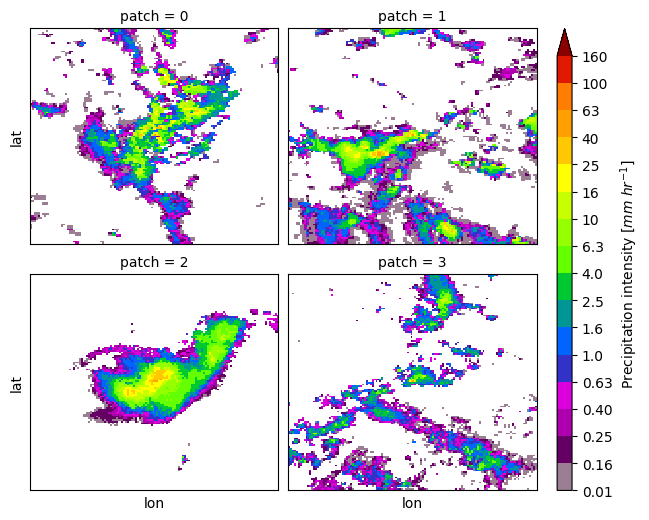

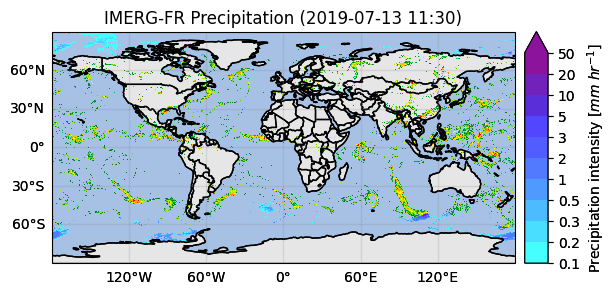

4. Plot Maps#

The GPM-API provides two ways of displaying the data:

The plot_map method plot the data in a geographic projection using the Cartopy imshow method
The plot_image method plot the data as an image using the Maplotlib imshow method

Let’s start by plotting a single timestep:

[ ]:

ds[variable].isel(time=0).gpm.plot_map()  # With cartopy

<matplotlib.image.AxesImage at 0x7f601dee3990>

../_images/tutorials_tutorial_02_IMERG_45_1.png

[ ]:

ds[variable].isel(time=0).gpm.plot_image()  # Without cartopy

<matplotlib.image.AxesImage at 0x7f601d543fd0>

../_images/tutorials_tutorial_02_IMERG_46_1.png

You can customize the map projection by passing a cartopy.crs.Projection to the subplot. The available projections are listed here.

[ ]:

# Define some figure options
dpi = 100
figsize = (12, 10)

# Example of Cartopy projections
crs_proj = ccrs.Robinson()  # ccrs.Orthographic(180, -90)

# Select a single variable
da = ds[variable]

# Create the map
fig, ax = plt.subplots(subplot_kw={"projection": crs_proj}, figsize=figsize, dpi=dpi)
ds[variable].isel(time=0).gpm.plot_map(ax=ax, add_labels=False, add_background=True, add_gridlines=False)
ax.set_global()

../_images/tutorials_tutorial_02_IMERG_48_0.png

To plot multiple timesteps, it is necessary to specify the argument col and col_wrap or row and row_wrap. The col/row argument specifies the dimension to be used to plot over the columns/rows, while the col_wrap/row_wrap argument enables to specify the number of plots to be displayed per column/row.

[ ]:

ds[variable].isel(time=slice(0, 4)).gpm.plot_map(col="time", col_wrap=2, add_labels=False, add_gridlines=False)

<gpm.visualization.facetgrid.CartopyFacetGrid at 0x7f6015aa91d0>

../_images/tutorials_tutorial_02_IMERG_50_1.png

[ ]:

ds[variable].gpm.plot_image(col="time", col_wrap=2, add_labels=False)

<gpm.visualization.facetgrid.ImageFacetGrid at 0x7f5ffc4c6c10>

../_images/tutorials_tutorial_02_IMERG_51_1.png

To facilitate the creation of a figure title, GPM-API also provides a title method:

[ ]:

# Title for multi-timestep dataset
# - The add_timestep argument is not exploited !
print(ds[variable].gpm.title(add_timestep=False))
print(ds[variable].gpm.title(add_timestep=True))

IMERG-FR Precipitation
IMERG-FR Precipitation

[ ]:

# Title for a single-timestep dataset
print(ds[variable].isel(time=0).gpm.title(add_timestep=True))

IMERG-FR Precipitation (2019-07-13 11:30)

When we visualize different product variables, GPM-API will automatically try to use different appropriate colormaps and colorbars. You can observe this in the following example:

[ ]:

ds_subset = ds.isel(time=0)

ds_subset["precipitation"].gpm.plot_map()
ds_subset["precipitation"].gpm.plot_map(cmap="RdYlBu_r")  # ex: enable to modify defaults parameters on the fly
ds_subset["probabilityLiquidPrecipitation"].gpm.plot_map()

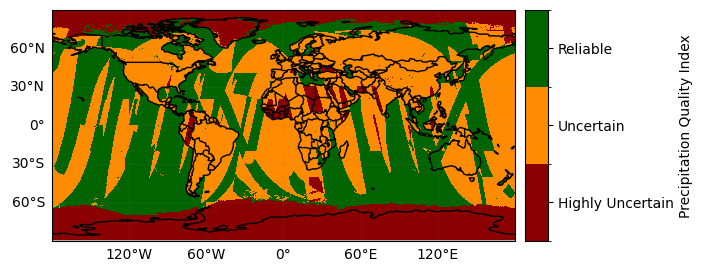

ds_subset["precipitationQualityIndex"].gpm.plot_map()  # ex: defaults to categorical colorbar
ds_subset["MWprecipSource"].gpm.plot_map()  # ex: defaults to categorical colorbar

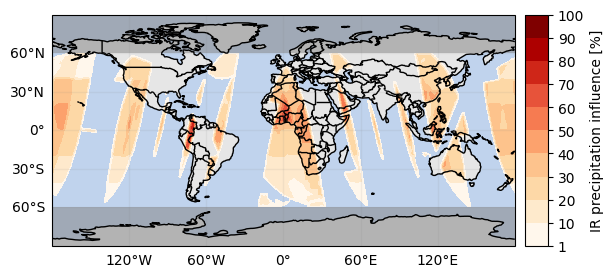

ds_subset["IRinfluence"].gpm.plot_map()

<matplotlib.image.AxesImage at 0x7f5fe18c5350>

../_images/tutorials_tutorial_02_IMERG_56_1.png

../_images/tutorials_tutorial_02_IMERG_56_2.png

../_images/tutorials_tutorial_02_IMERG_56_3.png

../_images/tutorials_tutorial_02_IMERG_56_4.png

../_images/tutorials_tutorial_02_IMERG_56_5.png

../_images/tutorials_tutorial_02_IMERG_56_6.png

The registered colorbar configurations can be displayed using gpm.colorbars.show_colorbars() and the plot_kwargs and cbar_kwargs required to customize the figure can be obtained by calling the gpm.get_plot_kwargs function. Here below we provide an example on how to display PMW precipitation rates estimates using the same colorbar used by NASA to display IMERG liquid precipitation estimates.

GPM-API provides colormaps and colorbars tailored to GPM product variables with the goal of simplifying the data analysis and make it more reproducible.

The default colormap and colorbar configurations are defined into YAML files into the gpm/etc/colorbars directory of the software.

However, users are free to override, add and/or customize the colorbars configurations using the pycolorbar registry.

[ ]:

plot_kwargs, cbar_kwargs = gpm.get_plot_kwargs("IMERG_Liquid")
ds_subset["precipitation"].gpm.plot_map(cbar_kwargs=cbar_kwargs, **plot_kwargs)

<matplotlib.image.AxesImage at 0x7f5ffc4af050>

../_images/tutorials_tutorial_02_IMERG_59_1.png

With some manipulations, it’s possible to display a single map showing the phase of precipitation using the probabilityLiquidPrecipitation variable.

[ ]:

ds_single_timestep = ds.isel(time=0)
da_is_liquid = ds_single_timestep["probabilityLiquidPrecipitation"] > 90
da_precip = ds_single_timestep[variable]
da_liquid = da_precip.where(da_is_liquid, 0)  # set to 0 where is not True
da_solid = da_precip.where(~da_is_liquid, 0)  # set to 0 where is True

plot_kwargs, cbar_kwargs = gpm.get_plot_kwargs("IMERG_Liquid")
p = da_liquid.gpm.plot_map(cbar_kwargs=cbar_kwargs, **plot_kwargs, add_colorbar=False)
plot_kwargs, cbar_kwargs = gpm.get_plot_kwargs("IMERG_Solid")
p = da_solid.gpm.plot_map(ax=p.axes, cbar_kwargs=cbar_kwargs, **plot_kwargs, add_colorbar=False)
_ = p.axes.set_title(label=da_solid.gpm.title())

../_images/tutorials_tutorial_02_IMERG_61_0.png

5. Geospatial Manipulations#

GPM-API provides methods to easily spatially subset grids by extent, country or continent.

The method crop_by_extent, crop_by_country and crop_by_continent enable to select the data within your area of interest.

[ ]:

# Crop by extent
extent = get_country_extent("United States")
ds_us = ds.gpm.crop(extent=extent)
ds_us[variable].isel(time=0).gpm.plot_map()

<matplotlib.image.AxesImage at 0x7f5ffc3c7490>

../_images/tutorials_tutorial_02_IMERG_64_1.png

[ ]:

# Crop by country name
ds_italy = ds.gpm.crop_by_country("Italy")
ds_italy[variable].isel(time=0).gpm.plot_map()

<matplotlib.image.AxesImage at 0x7f60141a9e10>

../_images/tutorials_tutorial_02_IMERG_65_1.png

[ ]:

# Crop by continent
ds_africa = ds.gpm.crop_by_continent("Africa")
ds_africa[variable].isel(time=0).gpm.plot_map()

<matplotlib.image.AxesImage at 0x7f60140ab410>

../_images/tutorials_tutorial_02_IMERG_66_1.png

You can also easily crop the data around a given point (i.e. ground radar location) using the crop_around_point method:

[ ]:

# Crop around a point (i.e. radar location)
lon = -90
lat = 31
distance = 250_000  # 250 km
ds_subset = ds.gpm.crop_around_point(lon=lon, lat=lat, distance=distance)
da_subset = ds_subset[variable].isel(time=0)
# Define ROI coordinates
circle_lons, circle_lats = get_circle_coordinates_around_point(
    lon,
    lat,
    radius=distance,
    num_vertices=360,
)

# Plot
p = da_subset.gpm.plot_map()
p.axes.set_title(da_subset.gpm.title(add_timestep=True))
p.axes.plot(circle_lons, circle_lats, "r-", transform=ccrs.Geodetic())
p.axes.scatter(lon, lat, c="black", marker="X", s=100, transform=ccrs.Geodetic())

<matplotlib.collections.PathCollection at 0x7f5fee4067d0>

../_images/tutorials_tutorial_02_IMERG_68_1.png

Please keep in mind that you can easily retrieve the extent of a GPM xarray object using the extent method.

The optional argument padding allows to expand/shrink the geographic extent by custom lon/lat degrees, while the size argument allows to obtain an extent centered on the GPM object with the desired size.

[ ]:

print(da_subset.gpm.extent(padding=0.1))  # expanding
print(da_subset.gpm.extent(padding=-0.1))  # shrinking
print(da_subset.gpm.extent(size=0.5))
print(da_subset.gpm.extent(size=0))  # centroid

Extent(xmin=-92.64999542236328, xmax=-87.3499969482422, ymin=28.65, ymax=33.35)
Extent(xmin=-92.44999542236329, xmax=-87.54999694824218, ymin=28.85, ymax=33.15)
Extent(xmin=-90.24999618530273, xmax=-89.74999618530273, ymin=30.75, ymax=31.25)
Extent(xmin=-89.99999618530273, xmax=-89.99999618530273, ymin=31.0, ymax=31.0)

6 Storm Labeling#

Using the xarray ximage accessor, it is possible to easily delineate (label) the precipitating areas. The label array is added to the dataset as a new coordinate. Currently is only possible to label DataArrays with a single timestep !

[ ]:

# Retrieve labeled xarray object
ds_single = ds.isel(time=0)
label_name = "label"
ds_single = ds_single.ximage.label(
    variable="precipitation",
    min_value_threshold=1,
    min_area_threshold=5,
    footprint=2,  # assign same label to precipitating areas 5 pixels apart
    sort_by="maximum",  # "maximum", "minimum", <custom_function>
    sort_decreasing=True,
    label_name=label_name,
)
# Plot full label array

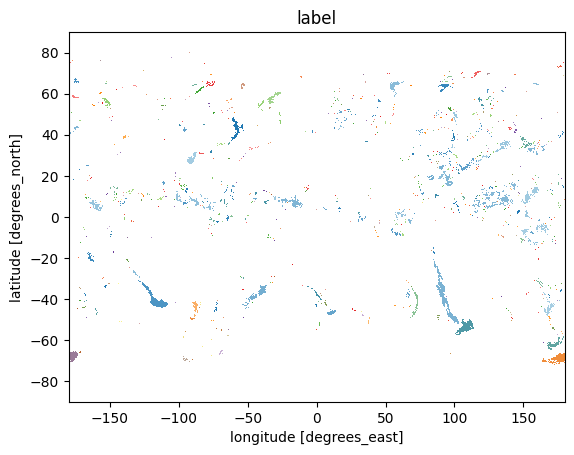

ds_single[label_name].ximage.plot_labels()

The array currently contains 1227 labels and 'max_n_labels'
            is set to 50. The colorbar is not displayed!

<matplotlib.image.AxesImage at 0x7f5fe113e150>

../_images/tutorials_tutorial_02_IMERG_73_2.png

Let’s zoom in a specific region:

[ ]:

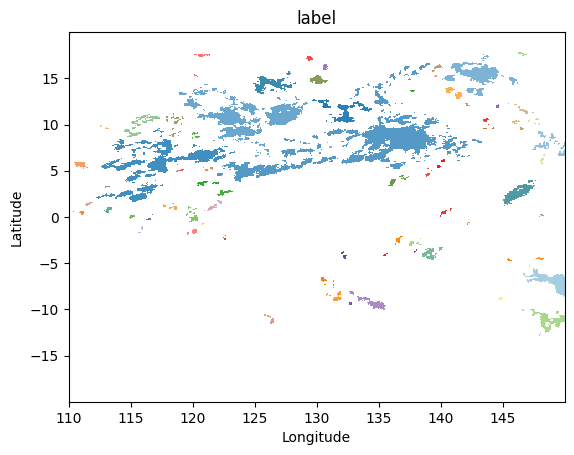

gpm.plot_labels(ds_single[label_name].sel(lon=slice(110, 150), lat=slice(-20, 20)))

The array currently contains 75 labels
        and 'max_n_labels' is set to 50. The colorbar is not displayed!

<matplotlib.image.AxesImage at 0x7f601694ff90>

../_images/tutorials_tutorial_02_IMERG_75_2.png

7. Patch Extraction#

With the xarray ximage accessor, it is also possible to extract patches around the precipitating areas. Here we provide a minimal example on how to proceed:

[ ]:

# Define the patch generator
da_patch_gen = ds_single["precipitation"].ximage.label_patches(
    label_name=label_name,
    patch_size=(128, 128),
    # Output options
    n_patches=4,
    # Patch extraction Options
    padding=0,
    centered_on="max",
    # Tiling/Sliding Options
    debug=False,
    verbose=False,
)

# # Retrieve list of patches
list_label_patches = list(da_patch_gen)
list_da = [da for label, da in list_label_patches]

# Display patches
gpm.plot_patches(list_label_patches)

../_images/tutorials_tutorial_02_IMERG_78_0.png

../_images/tutorials_tutorial_02_IMERG_78_1.png

../_images/tutorials_tutorial_02_IMERG_78_2.png

../_images/tutorials_tutorial_02_IMERG_78_3.png

You can exploit the xarray manipulations and FacetGrid capabilities to quickly create the following figure:

[ ]:

list_da_without_coords = [da.drop_vars(["lon", "lat"]) for da in list_da]
da_patch = xr.concat(list_da_without_coords, dim="patch")
da_patch.isel(patch=slice(0, 4)).gpm.plot_image(col="patch", col_wrap=2)

<gpm.visualization.facetgrid.ImageFacetGrid at 0x7f5fdd281690>

../_images/tutorials_tutorial_02_IMERG_80_1.png

IMERG products

Contents
