IMERG products#
The IMERG algorithms intercalibrate, merge, and interpolate satellite Passive Microwave (PMW) precipitation estimates, together with microwave-calibrated infrared (IR) satellite estimates, precipitation gauge analyses, and potentially other precipitation estimators at fine time and space scales for the TRMM and GPM eras over the entire globe.
The IMERG-ER (Early Run) and IMERG-LR (Late Run) products are considered Near-Real-Time (NRT) products.
IMERG-ER is available 4 hours from NRT, while IMERG-LR is available after 12 hours. The IMERG-FR (Final Run) product is instead produced with a delay of at least 3.5 months.
For more information on the IMERG products, please read the corresponding product technical documentation: - IMERG FR - IMERG LR - IMERG ER
Now let’s import the package required in this tutorial.
[1]:
import datetime
import gpm
Let’s have a look at the available IMERG products:
[2]:
gpm.available_products(product_categories="IMERG", product_types="RS")
[2]:
['IMERG-FR']
[3]:
gpm.available_products(product_categories="IMERG", product_types="NRT")
[3]:
['IMERG-ER', 'IMERG-LR']
1. Data Download#
Now let’s download an IMERG product over a couple of hours.
[4]:
# Specify the time period you are interested in
start_time = datetime.datetime.strptime("2019-07-13 11:00:00", "%Y-%m-%d %H:%M:%S")
end_time = datetime.datetime.strptime("2019-07-13 13:00:00", "%Y-%m-%d %H:%M:%S")
# Specify the product and product type
product = "IMERG-FR" # 'IMERG-ER' 'IMERG-LR'
product_type = "RS" # "NRT"
# Specify the version
version = 7
[5]:
# Download the data
gpm.download(
product=product,
product_type=product_type,
version=version,
start_time=start_time,
end_time=end_time,
force_download=False,
verbose=True,
progress_bar=True,
check_integrity=False,
)
All the available GPM IMERG-FR product files are already on disk.
Once, the data are downloaded on disk, let’s load the IMERG product and look at the dataset structure.
2. Data Loading#
[6]:
# Load IMERG dataset
ds = gpm.open_dataset(
product=product,
product_type=product_type,
version=version,
start_time=start_time,
end_time=end_time,
)
ds
/home/ghiggi/Python_Packages/gpm/gpm/dataset/conventions.py:42: GPM_Warning: 'The dataset start at 2019-07-13 11:30:00, although the specified start_time is 2019-07-13 11:00:00.'
warnings.warn(msg, GPM_Warning)
/home/ghiggi/Python_Packages/gpm/gpm/dataset/dataset.py:269: GPM_Warning: 'The GPM Dataset has missing granules !'
warnings.warn(msg, GPM_Warning)
[6]:
<xarray.Dataset>
Dimensions: (time: 4, lon: 3600, lat: 1800)
Coordinates:
* time (time) datetime64[ns] 2019-07-13T11:30:00...
* lon (lon) float32 -179.9 -179.9 ... 179.9 179.9
* lat (lat) float32 -89.95 -89.85 ... 89.85 89.95
crsWGS84 int64 0
Data variables:
precipitationCal (time, lat, lon) float32 dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
precipitationUncal (time, lat, lon) float32 dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
randomError (time, lat, lon) float32 dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
HQprecipitation (time, lat, lon) float32 dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
HQprecipSource (time, lat, lon) float32 dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
HQobservationTime (time, lat, lon) timedelta64[ns] dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
IRprecipitation (time, lat, lon) float32 dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
IRkalmanFilterWeight (time, lat, lon) float32 dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
probabilityLiquidPrecipitation (time, lat, lon) float32 dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
precipitationQualityIndex (time, lat, lon) float32 dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
Attributes: (12/15)
FileName: 3B-HHR.MS.MRG.3IMERG.20190713-S110000-E112959.0660.V0...
MissingData:
DOI: 10.5067/GPM/IMERG/3B-HH/06
DOIauthority: http://dx.doi.org/
AlgorithmID: 3IMERGHH
AlgorithmVersion: 3IMERGH_6.3
... ...
ProcessingSystem: PPS
DataFormatVersion: 6a
MetadataVersion: 6a
ScanMode: Grid
history: Created by ghiggi/gpm_api software on 2023-07-20 10:4...
gpm_api_product: IMERG-FRYou can list variables, coordinates and dimensions with the following methods
[7]:
# Available variables
variables = list(ds.data_vars)
print("Available variables: ", variables)
# Available coordinates
coords = list(ds.coords)
print("Available coordinates: ", coords)
# Available dimensions
dims = list(ds.dims)
print("Available dimensions: ", dims)
Available variables: ['precipitationCal', 'precipitationUncal', 'randomError', 'HQprecipitation', 'HQprecipSource', 'HQobservationTime', 'IRprecipitation', 'IRkalmanFilterWeight', 'probabilityLiquidPrecipitation', 'precipitationQualityIndex']
Available coordinates: ['time', 'lon', 'lat', 'crsWGS84']
Available dimensions: ['time', 'lon', 'lat']
To select the DataArray corresponding to a single variable:
[8]:
variable = "precipitationCal"
da = ds[variable]
da
[8]:
<xarray.DataArray 'precipitationCal' (time: 4, lat: 1800, lon: 3600)>
dask.array<_apply_mask, shape=(4, 1800, 3600), dtype=float32, chunksize=(1, 1800, 3600), chunktype=numpy.ndarray>
Coordinates:
* time (time) datetime64[ns] 2019-07-13T11:30:00 ... 2019-07-13T13:00:00
* lon (lon) float32 -179.9 -179.9 -179.8 -179.6 ... 179.8 179.9 179.9
* lat (lat) float32 -89.95 -89.85 -89.75 -89.65 ... 89.75 89.85 89.95
crsWGS84 int64 0
Attributes:
units: mm/hr
gpm_api_product: IMERG-FR
grid_mapping: crsWGS84To extract from the DataArray the numerical array you use:
[9]:
print("Data type of numerical array: ", type(da.data))
da.data
Data type of numerical array: <class 'dask.array.core.Array'>
[9]:
|
||||||||||||||||
If the numerical array data type is dask.Array, it means that the data are not yet loaded into RAM memory. To put the data into memory, you need to call the method compute, either on the xarray object or on the numerical array.
[10]:
# Option 1
da_opt1 = da.compute()
print("Data type of numerical array: ", type(da_opt1.data))
da_opt1.data
Data type of numerical array: <class 'numpy.ndarray'>
[10]:
array([[[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
...,
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan]],
[[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
...,
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan]],
[[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
...,
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan]],
[[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
...,
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan]]], dtype=float32)
[11]:
# Option 2
print("Data type of numerical array: ", type(da.data.compute()))
da.data.compute()
Data type of numerical array: <class 'numpy.ndarray'>
[11]:
array([[[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
...,
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan]],
[[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
...,
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan]],
[[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
...,
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan]],
[[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
...,
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan]]], dtype=float32)
An alternative to directly read only the variables of interest is to specify their names using the variables argument in gpm.open_dataset function.
[12]:
# - If chunks is not None, it does not load the data in RAM memory !
ds = gpm.open_dataset(
product=product,
product_type=product_type,
version=version,
start_time=start_time,
end_time=end_time,
variables=["precipitationCal", "probabilityLiquidPrecipitation"],
)
ds
/home/ghiggi/Python_Packages/gpm/gpm/dataset/conventions.py:42: GPM_Warning: 'The dataset start at 2019-07-13 11:30:00, although the specified start_time is 2019-07-13 11:00:00.'
warnings.warn(msg, GPM_Warning)
/home/ghiggi/Python_Packages/gpm/gpm/dataset/dataset.py:269: GPM_Warning: 'The GPM Dataset has missing granules !'
warnings.warn(msg, GPM_Warning)
[12]:
<xarray.Dataset>
Dimensions: (time: 4, lat: 1800, lon: 3600)
Coordinates:
* time (time) datetime64[ns] 2019-07-13T11:30:00...
* lon (lon) float32 -179.9 -179.9 ... 179.9 179.9
* lat (lat) float32 -89.95 -89.85 ... 89.85 89.95
crsWGS84 int64 0
Data variables:
precipitationCal (time, lat, lon) float32 dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
probabilityLiquidPrecipitation (time, lat, lon) float32 dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
Attributes: (12/15)
FileName: 3B-HHR.MS.MRG.3IMERG.20190713-S110000-E112959.0660.V0...
MissingData:
DOI: 10.5067/GPM/IMERG/3B-HH/06
DOIauthority: http://dx.doi.org/
AlgorithmID: 3IMERGHH
AlgorithmVersion: 3IMERGH_6.3
... ...
ProcessingSystem: PPS
DataFormatVersion: 6a
MetadataVersion: 6a
ScanMode: Grid
history: Created by ghiggi/gpm_api software on 2023-07-20 10:4...
gpm_api_product: IMERG-FR3. Dataset Manipulations#
Now, let’s first have a look at the methods provided by GPM-API
[13]:
variable = "precipitationCal"
da = ds[variable]
print("xr.Dataset gpm methods:", dir(ds.gpm))
print("")
print("xr.DataArray gpm methods:", dir(da.gpm))
xr.Dataset gpm methods: ['__class__', '__delattr__', '__dict__', '__dir__', '__doc__', '__eq__', '__format__', '__ge__', '__getattribute__', '__gt__', '__hash__', '__init__', '__init_subclass__', '__le__', '__lt__', '__module__', '__ne__', '__new__', '__reduce__', '__reduce_ex__', '__repr__', '__setattr__', '__sizeof__', '__str__', '__subclasshook__', '__weakref__', '_obj', 'crop', 'crop_by_continent', 'crop_by_country', 'end_time', 'extent', 'frequency_variables', 'get_crop_slices_by_continent', 'get_crop_slices_by_country', 'get_crop_slices_by_extent', 'get_slices_contiguous_granules', 'get_slices_contiguous_scans', 'get_slices_regular', 'get_slices_regular_time', 'get_slices_valid_geolocation', 'has_contiguous_scans', 'has_missing_granules', 'has_regular_time', 'has_valid_geolocation', 'is_grid', 'is_orbit', 'is_regular', 'is_spatial_2d', 'is_spatial_3d', 'plot_image', 'plot_map', 'plot_map_mesh', 'plot_map_mesh_centroids', 'plot_swath_lines', 'plot_transect_line', 'pyresample_area', 'spatial_2d_variables', 'spatial_3d_variables', 'start_time', 'subset_by_time', 'subset_by_time_slice', 'title', 'variables']
xr.DataArray gpm methods: ['__class__', '__delattr__', '__dict__', '__dir__', '__doc__', '__eq__', '__format__', '__ge__', '__getattribute__', '__gt__', '__hash__', '__init__', '__init_subclass__', '__le__', '__lt__', '__module__', '__ne__', '__new__', '__reduce__', '__reduce_ex__', '__repr__', '__setattr__', '__sizeof__', '__str__', '__subclasshook__', '__weakref__', '_obj', 'crop', 'crop_by_continent', 'crop_by_country', 'end_time', 'extent', 'frequency_variables', 'get_crop_slices_by_continent', 'get_crop_slices_by_country', 'get_crop_slices_by_extent', 'get_slices_contiguous_granules', 'get_slices_contiguous_scans', 'get_slices_regular', 'get_slices_regular_time', 'get_slices_valid_geolocation', 'get_slices_var_between', 'get_slices_var_equals', 'has_contiguous_scans', 'has_missing_granules', 'has_regular_time', 'has_valid_geolocation', 'is_grid', 'is_orbit', 'is_regular', 'is_spatial_2d', 'is_spatial_3d', 'plot_image', 'plot_map', 'plot_map_mesh', 'plot_map_mesh_centroids', 'plot_swath_lines', 'plot_transect_line', 'pyresample_area', 'spatial_2d_variables', 'spatial_3d_variables', 'start_time', 'subset_by_time', 'subset_by_time_slice', 'title', 'variables']
To check that the loaded GPM IMERG product has regular (no missing) timesteps, you can use:
[14]:
print(ds.gpm.has_regular_time)
print(ds.gpm.is_regular)
True
True
In case there are missing timesteps, you can obtain the time slices over which the dataset is regular:
[15]:
list_slices = ds.gpm.get_slices_regular_time()
print(list_slices)
[slice(0, 4, None)]
You can then select a regular portion of the dataset with:
[16]:
slc = list_slices[0]
print(slc)
slice(0, 4, None)
[17]:
ds_regular = ds.isel(time=slc)
To instead check if the open dataset has a single or multiple timestep, you can use:
[18]:
ds.gpm.is_spatial_2d
[18]:
False
[19]:
ds.isel(time=0).gpm.is_spatial_2d
[19]:
True
Note that you can also select a timestep by value using the sel method:
[20]:
ds.sel(time="2019-07-13T11:30:00")
[20]:
<xarray.Dataset>
Dimensions: (lat: 1800, lon: 3600)
Coordinates:
time datetime64[ns] 2019-07-13T11:30:00
* lon (lon) float32 -179.9 -179.9 ... 179.9 179.9
* lat (lat) float32 -89.95 -89.85 ... 89.85 89.95
crsWGS84 int64 0
Data variables:
precipitationCal (lat, lon) float32 dask.array<chunksize=(1800, 3600), meta=np.ndarray>
probabilityLiquidPrecipitation (lat, lon) float32 dask.array<chunksize=(1800, 3600), meta=np.ndarray>
Attributes: (12/15)
FileName: 3B-HHR.MS.MRG.3IMERG.20190713-S110000-E112959.0660.V0...
MissingData:
DOI: 10.5067/GPM/IMERG/3B-HH/06
DOIauthority: http://dx.doi.org/
AlgorithmID: 3IMERGHH
AlgorithmVersion: 3IMERGH_6.3
... ...
ProcessingSystem: PPS
DataFormatVersion: 6a
MetadataVersion: 6a
ScanMode: Grid
history: Created by ghiggi/gpm_api software on 2023-07-20 10:4...
gpm_api_product: IMERG-FR4. Product Visualization#
The GPM-API provides two ways of displaying the data: - The plot_map method plot the data in a geographic projection using the Cartopy imshow method - The plot_image method plot the data as an image using the Maplotlib imshow method

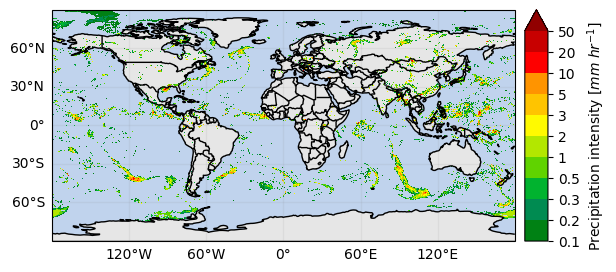

Let’s start by plotting a single timestep:
[21]:

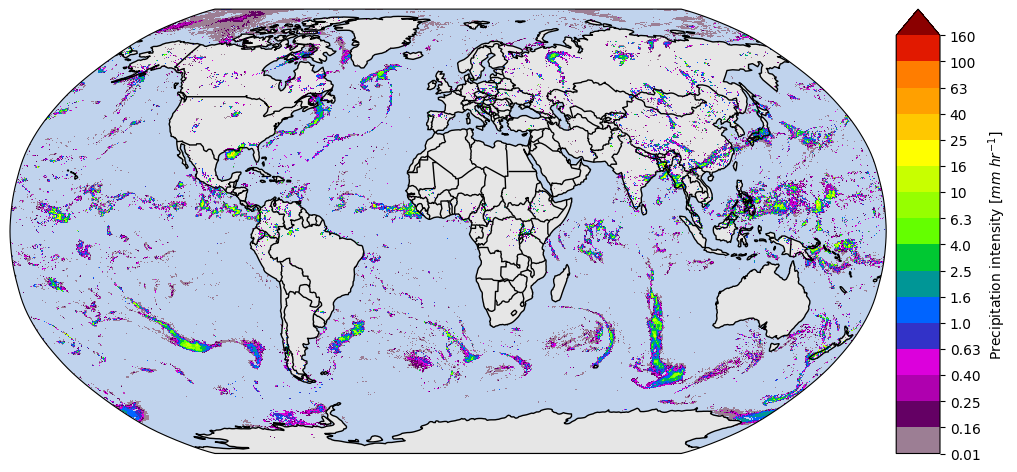

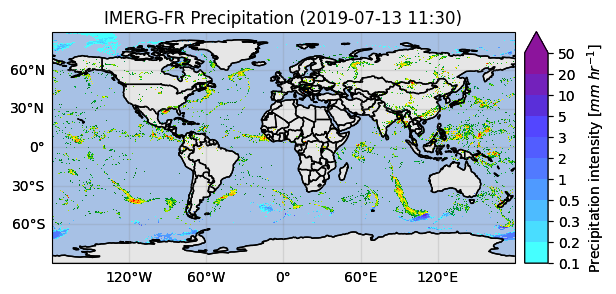

ds[variable].isel(time=0).gpm.plot_map() # With cartopy
[21]:
<matplotlib.image.AxesImage at 0x7f6404786ef0>
[22]:
ds[variable].isel(time=0).gpm.plot_image() # Without cartopy
[22]:
<matplotlib.image.AxesImage at 0x7f64042333a0>

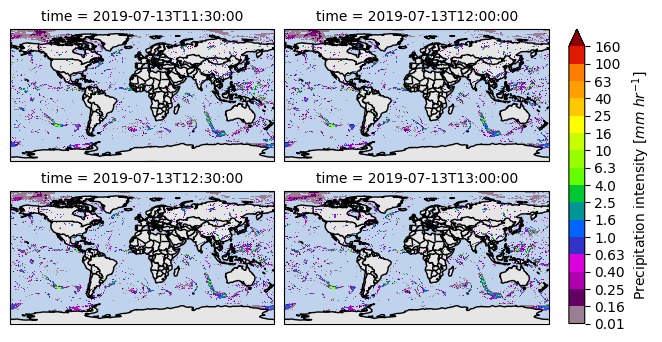

To plot multiple timesteps, it is necessary to specify the argument col and col_wrap or row and row_wrap. The col/row argument specifies the dimension to be used to plot over the columns/rows, while the col_wrap/row_wrap argument enables to specify the number of plots to be displayed per column/row.
[23]:
ds[variable].isel(time=slice(0,4)).gpm.plot_map(col="time", col_wrap=2)
[23]:
<xarray.plot.facetgrid.FacetGrid at 0x7f64042a2410>
[24]:
ds[variable].isel(time=slice(0,4)).gpm.plot_image(col="time", col_wrap=2)
[24]:
<xarray.plot.facetgrid.FacetGrid at 0x7f63faf26290>
To facilitate the creation of a figure title, GPM-API also provide a title method:
[25]:
# Title for multi-timestep dataset
# - The add_timestep argument is not exploited !
print(ds[variable].gpm.title(add_timestep=False))
print(ds[variable].gpm.title(add_timestep=True))
IMERG-FR PrecipitationCal
IMERG-FR PrecipitationCal
[26]:
# Title for a single-timestep dataset
print(ds[variable].isel(time=0).gpm.title(add_timestep=True))
IMERG-FR PrecipitationCal (2019-07-13 11:30)
To instead zoom on a specific regions of a plot_map figure, you can use the axis method set_extent.
[28]:
from gpm.utils.geospatial import get_country_extent
title = ds.gpm.title(add_timestep=False)
extent = get_country_extent("United States")
print("Extent: ", extent)
da = ds[variable].isel(time=0)

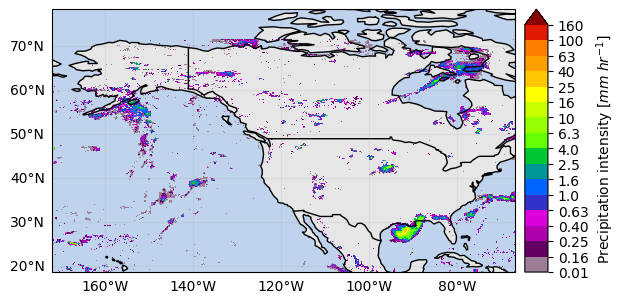

p = da.gpm.plot_map()
p.axes.set_extent(extent)
p.axes.set_title(label=title)
Extent: (-171.99111060299998, -66.76465999999999, 18.71619, 71.5577635769)
[28]:
Text(0.5, 1.0, 'IMERG-FR')
You can also customize the geographic projection, by specifying the wished Cartopy projection. The available projections are listed here
[29]:
import cartopy.crs as ccrs
import matplotlib.pyplot as plt
from gpm.visualization.plot import plot_cartopy_background
# Define some figure options
dpi = 100
figsize = (12, 10)
# Examples of Cartopy projections
crs_proj = ccrs.InterruptedGoodeHomolosine()
crs_proj = ccrs.Mollweide()
crs_proj = ccrs.Robinson()
# Select a single timestep
da = ds[variable].isel(time=0)
# Create the map
fig, ax = plt.subplots(subplot_kw={"projection": crs_proj}, figsize=figsize, dpi=dpi)
plot_cartopy_background(ax)
da.gpm.plot_map(ax=ax)
[29]:
<matplotlib.image.AxesImage at 0x7f63fa6f7250>
It is possible to further customize these figures in multiply ways. For example by specifying the own colormap:
[30]:
da = ds[variable].isel(time=0)
da.gpm.plot_map(cmap="Spectral", vmin=0.1, vmax=100)
[30]:
<matplotlib.image.AxesImage at 0x7f63fa6b04f0>
However, note that GPM-API can provide a large set of pre-defined colormaps and colorbar settings. For example, you can retrieve the colormap used originally by NASA to display the IMERG product:
[31]:
plot_kwargs, cbar_kwargs = gpm.get_plot_kwargs("IMERG_Solid")
da.gpm.plot_map(cbar_kwargs=cbar_kwargs, **plot_kwargs)
[31]:
<matplotlib.image.AxesImage at 0x7f63fa424580>
[32]:
plot_kwargs, cbar_kwargs = gpm.get_plot_kwargs("IMERG_Liquid")
da.gpm.plot_map(cbar_kwargs=cbar_kwargs, **plot_kwargs)
[32]:
<matplotlib.image.AxesImage at 0x7f63fa315ab0>

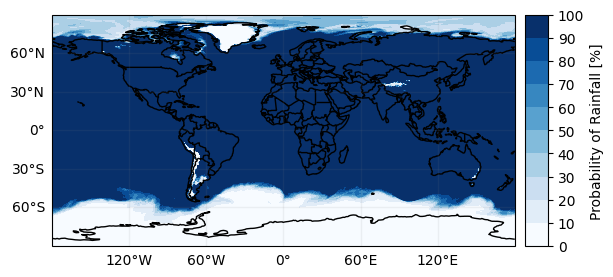

With some manipulations, it’s possible to display a single map showing the phase of precipitation using the probabilityLiquidPrecipitation variable.
[33]:
ds_single_timestep = ds.isel(time=0)
da_is_liquid = ds_single_timestep["probabilityLiquidPrecipitation"] > 90
da_precip = ds_single_timestep[variable]
da_liquid = da_precip.where(da_is_liquid, 0) # set to 0 where is not True
da_solid = da_precip.where(~da_is_liquid, 0) # set to 0 where is True
plot_kwargs, cbar_kwargs = gpm.get_plot_kwargs("IMERG_Liquid")
p = da_liquid.gpm.plot_map(cbar_kwargs=cbar_kwargs, **plot_kwargs, add_colorbar=False)
plot_kwargs, cbar_kwargs = gpm.get_plot_kwargs("IMERG_Solid")
p = da_solid.gpm.plot_map(ax=p.axes, cbar_kwargs=cbar_kwargs, **plot_kwargs, add_colorbar=False)
_ = p.axes.set_title(label=da_solid.gpm.title())
5. Dataset Cropping#
GPM-API provides methods to spatially subset the data by extent, country or continent.
[34]:
# Crop by extent
extent = get_country_extent("United States")
ds_us = ds.gpm.crop(extent=extent)
ds_us[variable].isel(time=0).gpm.plot_map()
[34]:
<matplotlib.image.AxesImage at 0x7f63fa217550>
[35]:
# Crop by country name
ds_it = ds.gpm.crop_by_country("Italy")
ds_it[variable].isel(time=0).gpm.plot_map()
[35]:
<matplotlib.image.AxesImage at 0x7f63fa122f20>
[36]:
# Crop by continent
ds_it = ds.gpm.crop_by_continent("Africa")
ds_it[variable].isel(time=0).gpm.plot_map()
[36]:
<matplotlib.image.AxesImage at 0x7f63f8ce9b10>

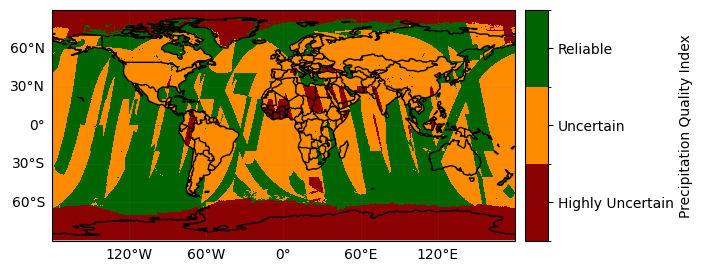

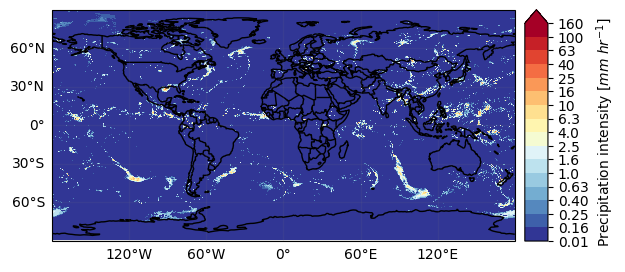

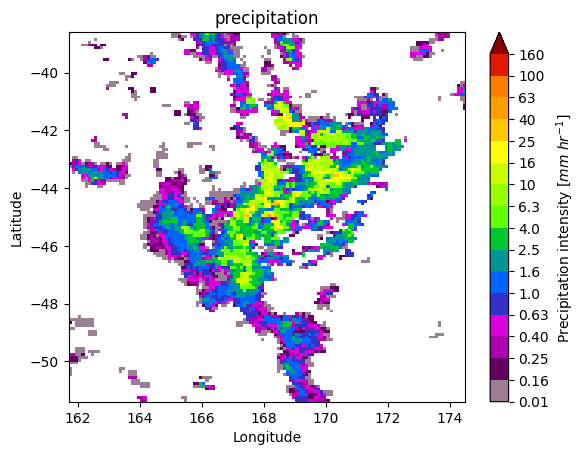

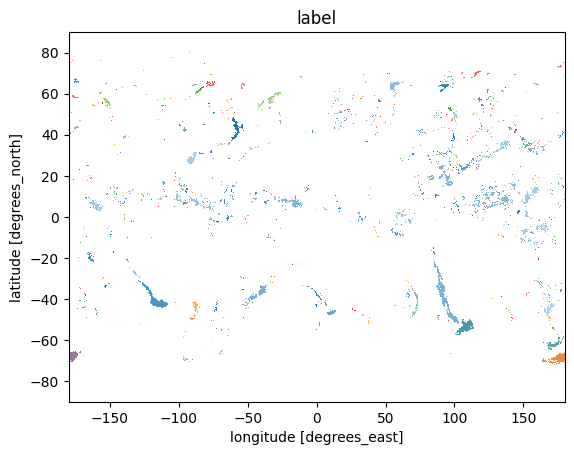

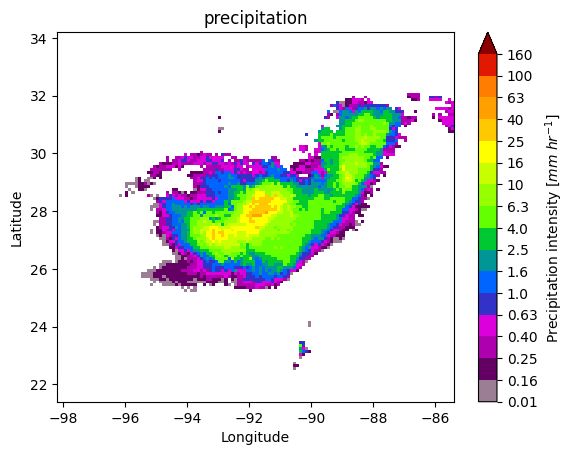

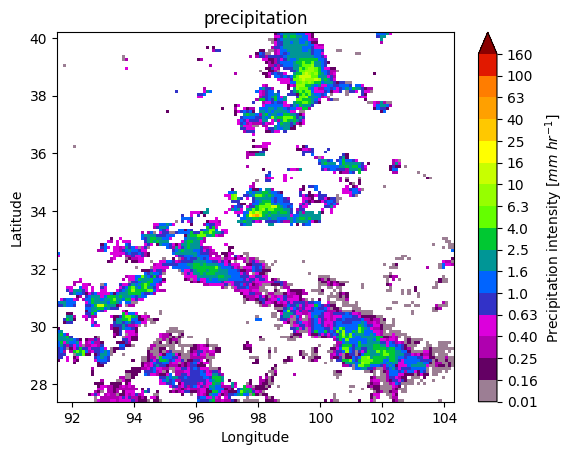

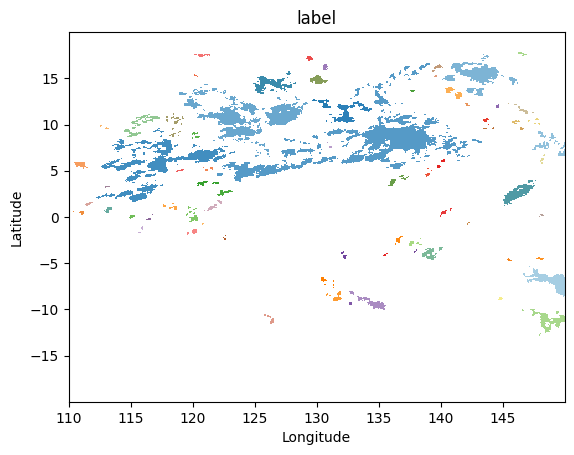

6. Identify Precipitating Areas#

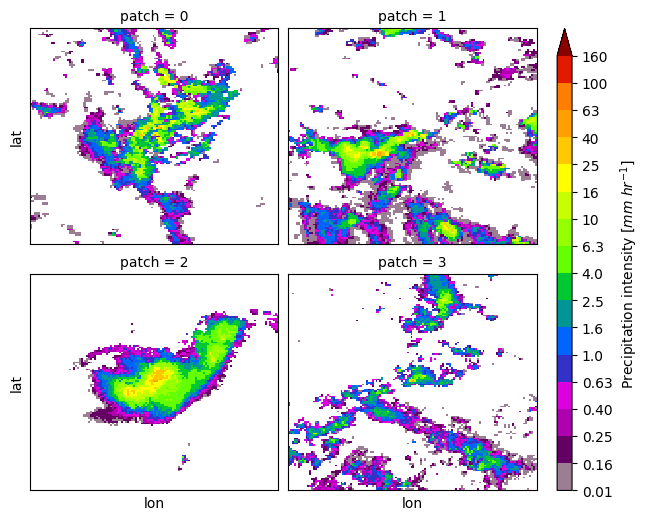

7. Extract Patches#

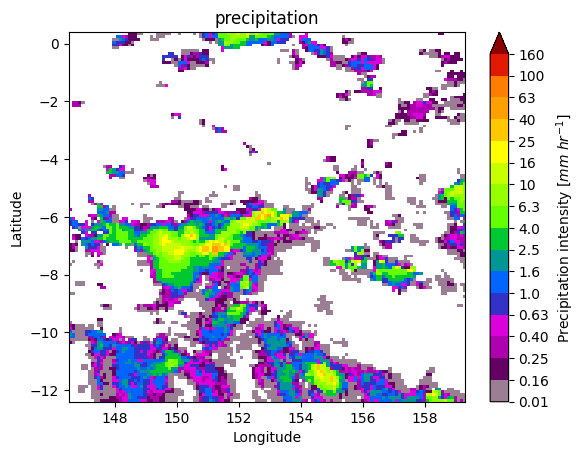

GPM-API comes with utilities helping the extraction and tracking of precipitating areas. Go through the dedicated tutorial to discover all the details !!!
To perform climatological analysis using IMERG, please rread also the following dedicated tutorials - TODO - TODO
